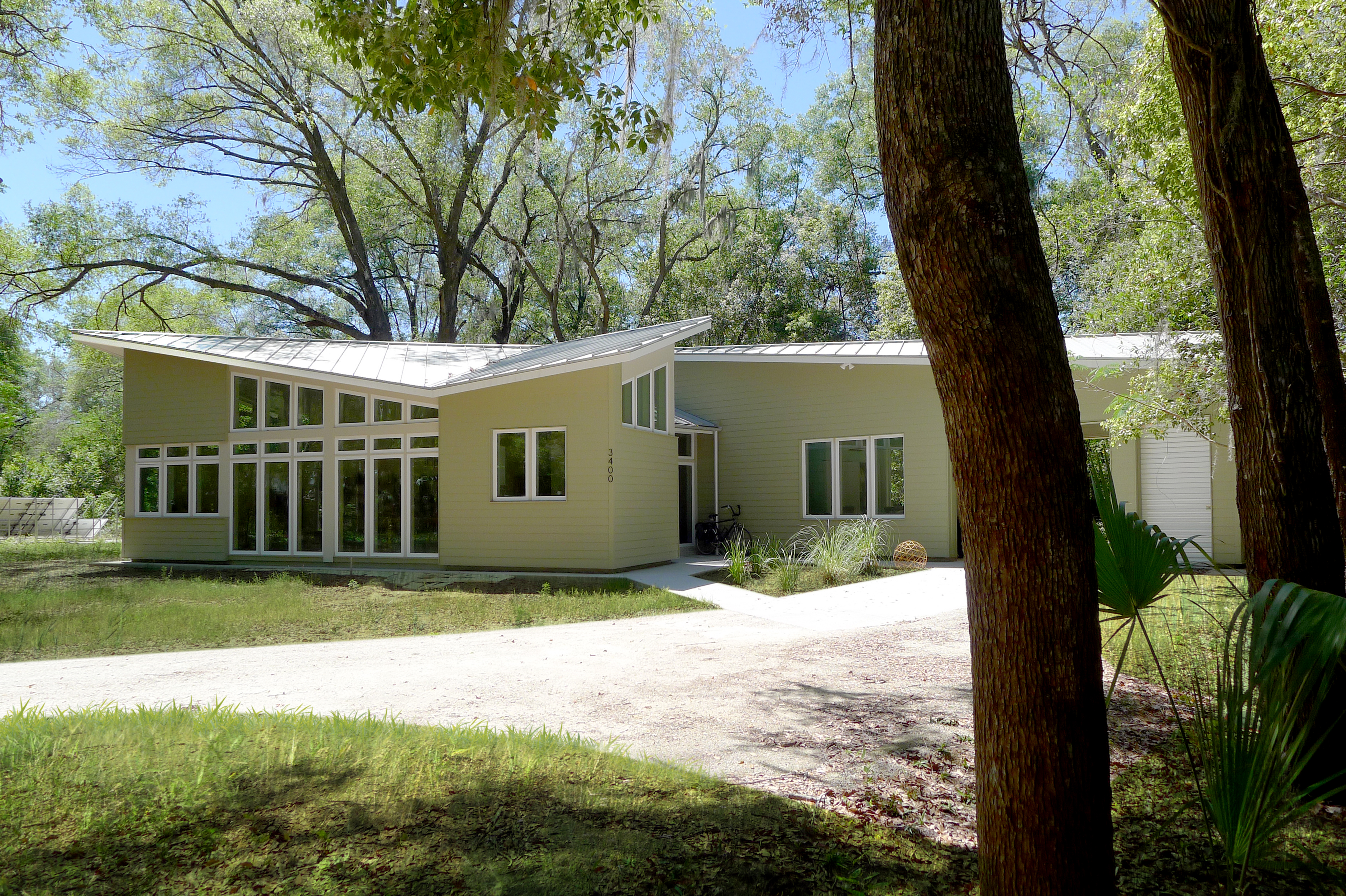

Quinlivan Net-Zero Energy House

Gainesville, Florida USA

The Quinlivan Net-Zero Energy House is a privately-funded design research project. The project’s goals center on testing and evaluating the Passive House Building Energy standard for use in hot and humid climates. The research team is seeking to reconcile the requirements of a high-performance super-insulated building envelope with more porous vernacular building models common in tropical and sub-tropical climates. The project work is centered on the design of a single-family residence in Gainesville, Florida.

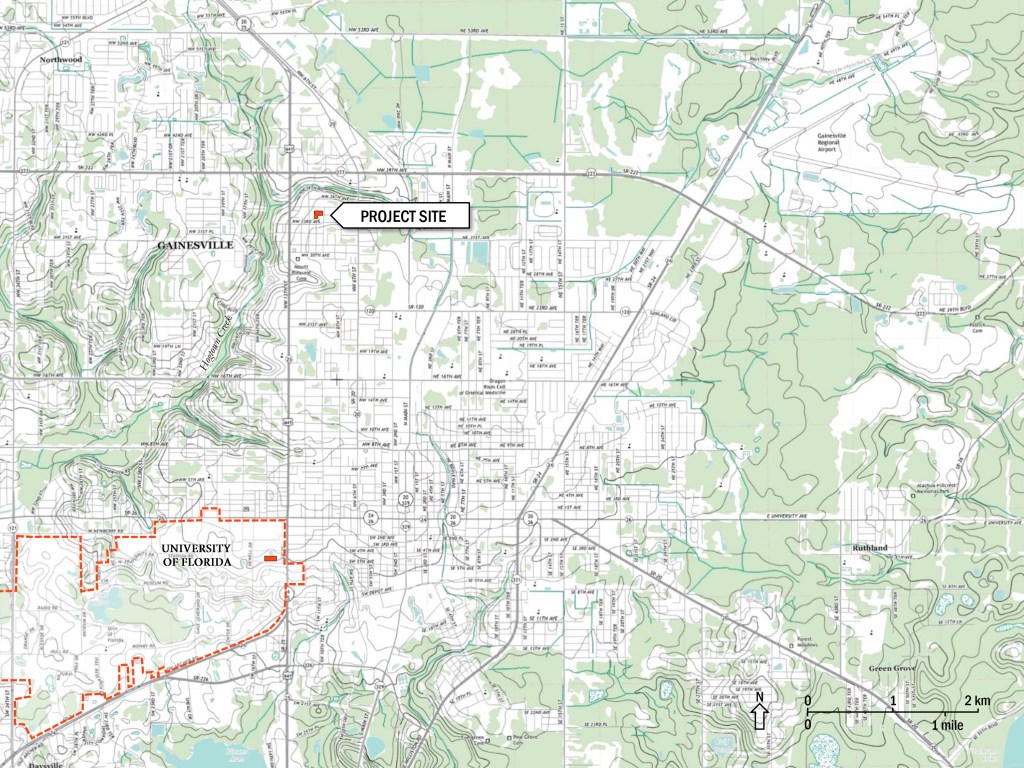

The project site is located at the intersection of NW 10th Street and NW 34th Avenue in the City of Gainesville, Florida, in Section 29, Township 9, and Range 20. The site consists of two parcels, both currently owned by Garrett Quinlivan. The two combined parcels total approximately 37,600 square feet, or 0.86 acres, of land area.

The project is currently in construction, with occupancy anticipated in early 2016.

In direct contrast to loose and porous building envelope strategies, the Passive House building standard aggressively targets energy performance through the design and construction of air-tight and super-insulated envelopes, designed to eliminate or minimize thermal bridges. It differs from other rating systems in that it is centered on specific quantitative energy performance metrics. While it has only been formalized in the United States since 2007, the earliest research on these strategies dates from the 1970s. The Passive House Alliance United States (PHA-US) notes that “The Passive House standard is the most stringent building energy standard in the world: buildings that meet the standard use 80 percent less energy than conventional equivalent buildings, and provide superior air quality and comfort.” This claim appears to be validated by published test data from houses constructed to meet the standard.

The basic principals of Passive House design and construction are relatively clear and straight-forward:

  • Superinsulate the entire envelope continuously.
  • Eliminate thermal bridges.
  • Create a continuous air barrier.
  • Provide mechanical ventilation with heat or energy recovery.
  • Use high-performance windows and doors.

The Quinlivan House has been designed to meet these criteria on a site in Gainesville, Florida. As designed, the thermal envelope includes a 2×6 wood frame bearing wall, cavities filled with dense-pack fiberglass insulation, two layers of 1 ½ inch thick board insulation, and a foil radiant barrier. The thermal resistance of the exterior walls is in excess of R 35 hr-ft2-°F/BTU.

Within this exterior envelope, a continuous air barrier is being provided with a layer of oriented strand board, where all seams and joints are taped to avoid air exfiltration/infiltration. Special attention is required at the foundation, at door and window openings, and at the juncture with the roof to avoid thermal bridges.

Because of the site’s location in a warm, humid climate, the vapor barrier is pushed outward in the wall assembly to prevent the migration of moisture-laden air into the wall assembly and/or into the conditioned space of the structure. This helps avoid condensation within the wall cavity.

Project Data

Area: 2,380 gross square feet (under roof); 1,333 net square feet (interior, conditioned).
Cost: $240,000 (GC estimate); approximately $101/gsf.

Project Team

  • Owner: Garrett Quinlivan
  • Architect: University of Florida, College of Design, Construction and Planning, School of Architecture, 231 Architecture Building | PO Box 115702, Gainesville, FL 32611-5702 USA. Principal Investigator: Bradley Walters, AIA, NCARB, Tel. 352.514.7994 | Fax. 352.392.4606 | http://studiowalters.com. Design + Research Project Team: Summer 2013: Jessica Pace, Azhar Khan; Spring 2013: Matthew Flores, David Goldsmith. Solar Path Analysis + Mapping: Michael P. Richmond, AIA.
  • Structural Engineer: Wayland Structural Engineering, Gregory S. Wayland, P.E., 2801 SW 81st Street, Gainesville, FL 32608 | Tel/Fax. 352.331.0727 | Cell. 352.317.4120 | FL PE No: #54396 | FL COA No: #8236.
  • Mechanical Engineer: The Sustainable Design Group, Mary C. Alford, PE, Principal, 5208 SW 91st Way, Suite 110, Gainesville, FL 32608 | Tel. 352.339.3899 | Cell. 352.317.4480 | FL AR No: #16554 | FL PE No: # 68187.
  • Certified Passive House Consultant: Passive Energy Designs LLC, Ryan Abendroth, Principal, 5221 Cathedral Drive, St. Louis, MO 63129, Phone: 314.807.3773, http://www.passiveenergydesigns.com.
  • General Contractor: Hudd Construction Inc. (HCI), Principal: Jason “Tug” Huddleston, Project Manager: Loren Spies, PO Box 602, Micanopy, FL 32667, Phone: 352.538.4221, Fax: 904.621.9043

Publications + Presentations

  • Walters, Bradley. “On Tightness and Looseness.” Proceedings of Subtropical Cities: 2013 ACSA Fall Conference: Design Interventions for Changing Climates. Washington DC: Association of Collegiate Schools of Architecture, Inc. In press.
  • “On Tightness and Looseness,” Presentation at the 2013 ACSA Fall Conference: Design Interventions for Changing Climates, Fort Lauderdale FL, 19 October 2013.
  • “Quinlivan Passivhaus: New Approaches to Building in Hot + Humid Climates,” DCP Faculty Research Showcase Lecture and Refereed Poster Presentation, University of Florida College of Design, Construction and Planning, Gainesville FL, 31 January 2014
